Three Phase Triplex Demand WT3P-6 Pump Control Panel
Quote Request
Request is being submitted...

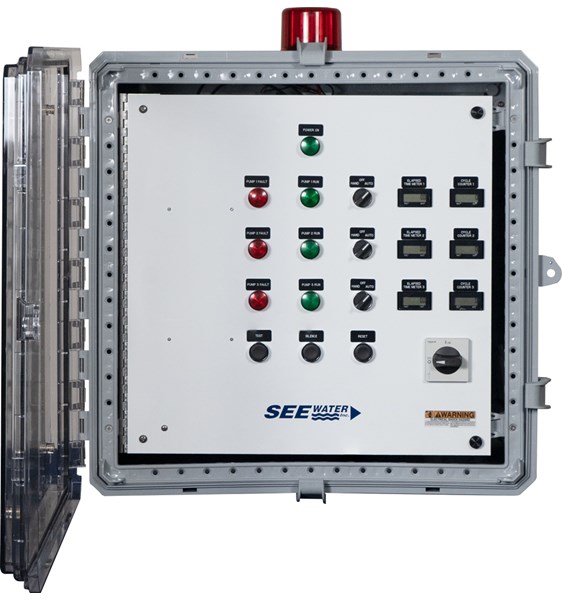

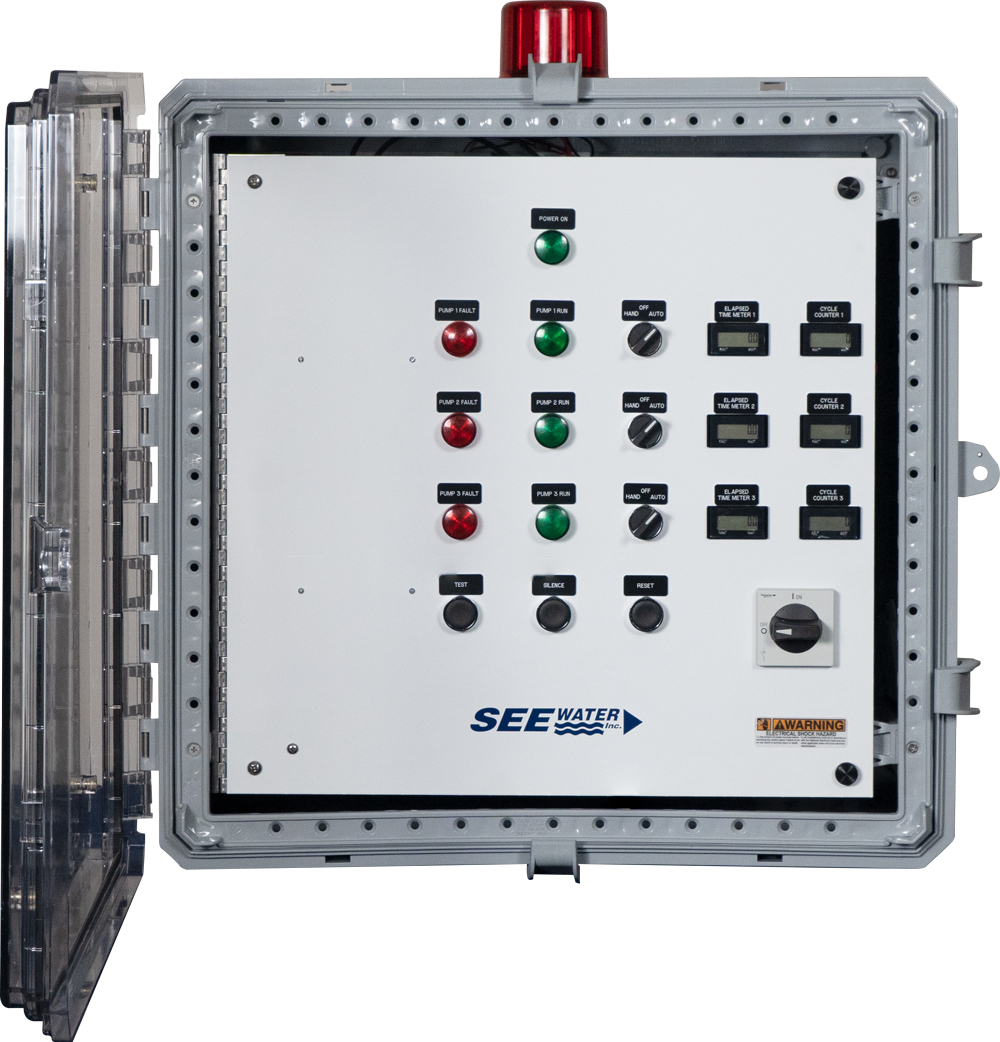

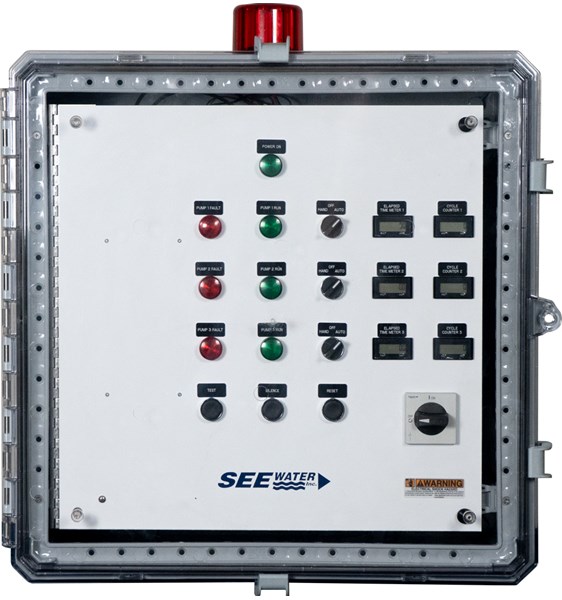

The WS Series® triplex control panels are ideal for sewage pump chambers, grinder pumps, sump pump basins, and lift stations. Features include the ability to choose jockey pump rotation or standard triplex mode, three-pump high demand and a low/high liquid alarm. See Water® triplex control panels come standard with a clear front NEMA 4X rated enclosure, main disconnect, hand-off-auto (H.O.A.) toggle switches, green Pump Run lights, red Pump Fault lights, and remote monitoring dry contacts for High Liquid, Pump Run(s), and Pump Fault(s).
| Model | Voltage | Full Load Amps |
| WT3P-6-1 | 208/240/480 | 1.0-1.6 |
| WT3P-6-2 | 208/240/480 | 1.6-2.5 |
| WT3P-6-3 | 208/240/480 | 2.5-4.0 |
| WT3P-6-4 | 208/240/480 | 4.0-6.3 |
| WT3P-6-5 | 208/240/480 | 6.0-10.0 |
| WT3P-6-6 | 208/240/480 | 9.0-14.0 |
| WT3P-6-7 | 208/240/480 | 13.0-18.0 |
| WT3P-6-8 | 208/240/480 | 17.0-23.0 |
| WT3P-6-9 | 208/240/480 | 20.0-25.0 |
| WT3P-6-10 | 208/240/480 | 24.0-32.0 |
Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE
Features
- Designed to control three 208/240/480VAC pumps in sewage applications
- NEMA 4X rated polycarbonate enclosure
- Pump control visible features: Pump hand-off-auto (H.O.A.) switches for Pump #1, 2 and 3, green Pump Run lights, red Pump Fault lights with reset button, and green Power On light
- Alarm visible features: Red beacon alarm light, alarm test and silence buttons
- Alarm horn sounds at 85 decibels at 10’
- Remote monitoring dry contacts: Low Liquid, High Liquid, Pump #1 fault, Pump #2 Fault, Pump #3 Fault, Pump #1 Run, Pump #2 Run, Pump #3 Run (normally open)
- Pump protection: Motor protective switch included for all pumps (branch circuit protection, adjustable overload and disconnect) and pump thermal cutout circuit
- Includes 6 floats. 5 narrow angle N/O float switches with 20′ cords and mounting hardware and 1 low level narrow angle N/C float switch with 20’ cord
- Float status indicators (Low Level, Stop, Lead, Lag, Lag/Lag, and High Liquid)
- UL Listed for the United States and Canada
Applications
- Sewage pump chambers
- Grinder pumps
- Sump pump basins
- Lift stations
Custom Options
- 24 = Pump Exerciser
- 28 = Power On Dry Contact (Normally Open)
- 3R = Painted Steel Enclosure
- AF = Alarm Flasher
- AH = Anti Condensation Heater
- C = Additional Cord Length Per Foot Per Component*
- CCT = Cycle Counter w/ LCD Display and Reset
- CO = Convenience Outlet (User to supply 120 VAC)
- ETT = Elapsed Time Meter w/ LCD Display and Reset
- GR = Generator Receptacle, Includes Transfer Switch
- IST = Intrinsically Safe
- LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
- PM = Phase Monitoring
- PX = Pump Portal® Wireless Remote Communication
- SFT = Seal Failure Circuit w/ Indicator Lights
- S3 = No Floats Option
- SS4 = Upgraded Enclosure (304 Stainless Steel)
- SS6 = Upgraded Enclosure (316 Stainless Steel)
*Additional cord length greater than 20’: Specify after C. Example: (WT3P-6-4-C50) Indicates 50’ cord lengths for all floats.
