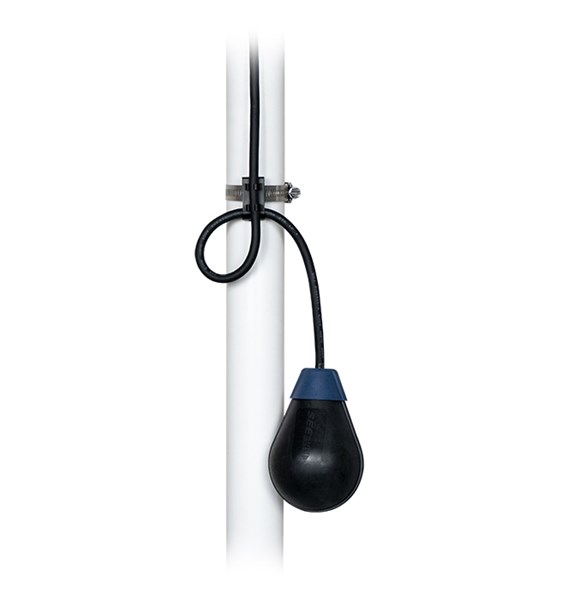

The Float Pro® control switch is a narrow angle or wide angle control switch that is used to monitor liquid levels in wastewater and sewage applications. The Float Pro® series allows for a multitude of different float styles and functions.
| Float Pro® Series Control Switches/Floats - Normally Open - Narrow Angle | |
|---|---|
| FPC0N20* | Narrow Angle Float Switch with 20' Cord and Mounting Clamp |
| FPC0N30 | Narrow Angle Float Switch with 30' Cord and Mounting Clamp |
| FPC0N50 | Narrow Angle Float Switch with 50' Cord and Mounting Clamp |
| FPC0N100 | Narrow Angle Float Switch with 100' Cord and Mounting Clamp |
Note: FPC0N20* N/O Narrow Angle Float Switch is standard on Knight Series®, WS Series®, Trident®, Hydra®, and Parabola® control products. |
|
| Float Pro® Series Control Switches/Floats - Normally Open - Wide Angle | |
|---|---|
| FPC0W20 | Wide Angle Float Switch with 20' Cord and Mounting Clamp |
| FPC0W30 | Wide Angle Float Switch with 30' Cord and Mounting Clamp |
| FPC0W50 | Wide Angle Float Switch with 50' Cord and Mounting Clamp |
| FPC0W100 | Wide Angle Float Switch with 100' Cord and Mounting Clamp |
| Float Pro® Series Control Switches/Floats - Normally Closed - Narrow Angle | |
|---|---|
| FPC1N20 | Narrow Angle Float Switch with 20' Cord and Mounting Clamp |
| FPC1N30 | Narrow Angle Float Switch with 30' Cord and Mounting Clamp |
| FPC1N50 | Narrow Angle Float Switch with 50' Cord and Mounting Clamp |
| FPC1N100 | Narrow Angle Float Switch with 100' Cord and Mounting Clamp |
| Float Pro® Series Control Switches/Floats - Normally Closed - Wide Angle | |
|---|---|
| FPC1W20 | Wide Angle Float Switch with 20' Cord and Mounting Clamp |
| FPC1W30 | Wide Angle Float Switch with 30' Cord and Mounting Clamp |
| FPC1W50 | Wide Angle Float Switch with 50' Cord and Mounting Clamp |
| FPC1W100 | Wide Angle Float Switch with 100' Cord and Mounting Clamp |
Specifications
- Simple installation
- Includes mounting hardware
- Designed for effluent, sewage, and dewatering applications
- 2 7/8” diameter, 4 1/2” long, high impact, corrosion resistant, polypropylene housing for use in sewage and water up to 140°F (60°C)
- Electrical Requirements: 5 amps; 125VAC/250VAC, 50/60 Hz
- Cable Type: Flexible 18 gauge, 2 conductor (UL, CSA) SJOW
- Maximum Water Depth: 30’ (9 meters), 13 PSI (90 kPa)
- UL listed
