Three Phase Duplex Demand WD3P-4 Pump Control Panel

Products Pump Panels

Quote Request

Three Phase Duplex Demand WD3P-4

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.

Name

Company

Phone

Message

By clicking "Submit Quote Request", you agree to See Water's Terms of Use and Privacy Policy. You consent to receive phone calls and SMS messages from See Water, Inc. to provide updates on your quote, order, and/or for marketing purposes. Message frequency depends on your activity. You may opt-out by texting "STOP". Message and data rates may apply.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

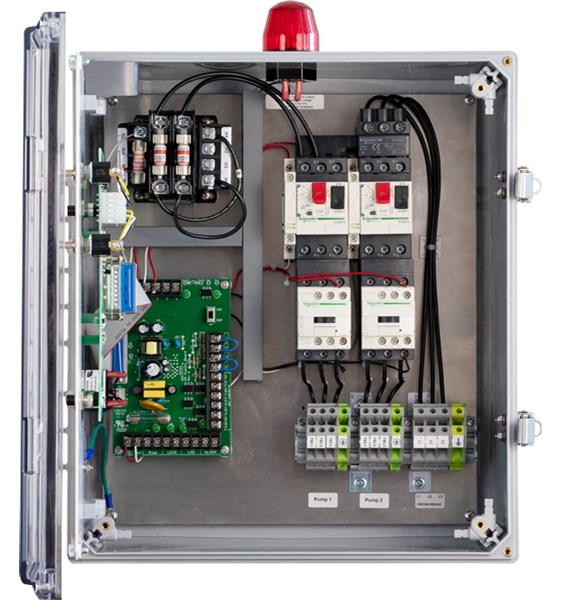

Three Phase Duplex Demand WD3P-4 Inside Photo

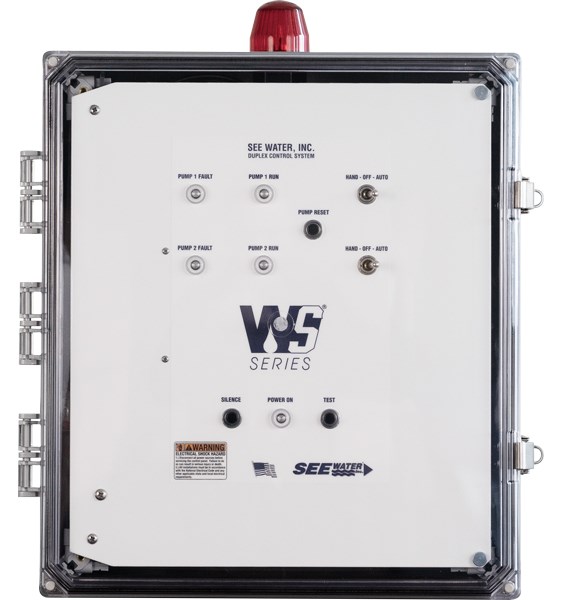

Three Phase Duplex Demand WD3P-4 Outside Photo

Literature

WD3P-4-(3021-3030)

Schematic

WD3P-4-(3031-3033)

Schematic

WD3P-4-3034

Schematic

Typical Application: Three Phase Duplex Demand WD3P-4

The WS Series® duplex control panels will control two 208/240/480V three phase pumps designed for dewatering, wastewater, and sewage applications. See Water duplex control panels come standard with a clear front NEMA 4X rated enclosure, IEC rated contactors, and motor protective switches. All panels are UL listed for the United States and Canada and come standard with a five-year warranty.

REQUEST A QUOTE

Model	Voltage	Full Load Amps
WD3P-4-3021	208/240/480	1.0-1.6
WD3P-4-3022	208/240/480	1.6-2.5
WD3P-4-3023	208/240/480	2.5-4.0
WD3P-4-3024	208/240/480	4.0-6.3
WD3P-4-3025	208/240/480	6.0-10.0
WD3P-4-3026	208/240/480	9.0-14.0
WD3P-4-3027	208/240/480	13.0-18.0
WD3P-4-3028	208/240/480	17.0-23.0
WD3P-4-3029	208/240/480	20.0-25.0
WD3P-4-3030	208/240/480	24.0-32.0
WD3P-4-3031	208/240/480	30.0-40.0
WD3P-4-3032	208/240/480	37.0-50.0
WD3P-4-3033	208/240/480	48.0-65.0
WD3P-4-3034	208/240/480	65.0-115.0

Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE

Features

UL listed for the United States and Canada (panel and controls)
Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
Duplex provides: Two-pump alternation and high demand two-pump operation
Pump control visible indicators: Pump #1 and #2 hand-off-auto (H.O.A.) switch, green Pump Run lights, red Pump Fault lights with reset button, and Power On light
Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
Alarm horn sounds at 85 decibels at 10 feet
Remote monitoring dry contacts: High Liquid, Pump Run(s), Pump #1 Fault, and Pump #2 Fault
Upgraded pump protection: Motor protective switches included for both pumps (branch circuit protection, adjustable overload and disconnect) and thermal cutout with indicators

Applications

Sewage pump chambers
Grinder pumps
Sump pump basins
Lift stations

Custom Options

24 = Pump Exerciser
28 = Power On Dry Contact (Normally Open)
3R = Painted Steel Enclosure
AF = Alarm Flasher
AH = Anti Condensation Heater
C = Additional Cord Length Per Foot Per Component*
CCD = Cycle Counter w/ LCD Display and Reset
CO = Convenience Outlet (User to supply 120 VAC)
ETD = Elapsed Time Meter w/ LCD Display and Reset
GR = Generator Receptacle, Includes Transfer Switch
ISD = Intrinsically Safe
LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
LL = Low Level Alarm
MD = Main Disconnect; Up to 100 FLA
MD2 = Main Disconnect; 100 to 230 FLA
PM = Phase Monitoring
PX = Pump Portal® Wireless Remote Communication
SFD = Seal Failure Circuit w/ Indicator Lights
S3 = No Floats Option
SS4 = Upgraded Enclosure (304 Stainless Steel)
SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’: Specify after C. Example: (WD3P-4-3021-C50) Indicates 50’ cord lengths for all floats.
