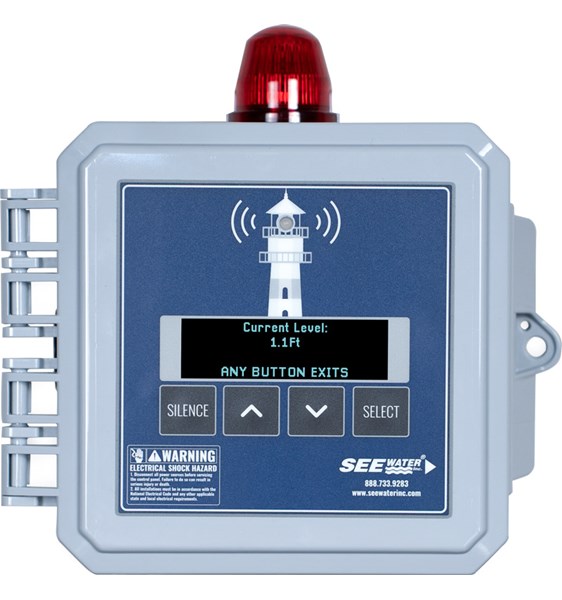

The Lighthouse™ Liquid Level Alarm comes with a user-friendly interface for level monitoring applications. It can be used with up to two level transmitters as well as low and high level floats to provide continuous tank liquid level and alarm readings. This device offers you complete flexibility to adjust the system to your desired alarm set points and is easy to set up in minutes!

REQUEST A QUOTE

Models:	Voltage:
LH7001	120/208/240VAC

Add Pump Portal® remote pump monitoring to this system! LEARN MORE

Features

120VAC, single phase
12VDC input for backup battery (battery is charging while AC power is connected)
Indoor/Outdoor NEMA 4X rated enclosure (6” x 6” x 3”): Heavy duty polycarbonate
Red beacon alarm light
Audible alarm sounds 85 decibels at 10’
Compatible with two 4-20mA 24V level transmitters
Includes panel-mounted digital display with four-button membrane
Adjustable set points for high level and low level alarms
User-configurable passcode access
Remote monitoring dry contacts
Power On LED indicator (indicates cellular signal strength with Pump Portal® option
UL Listed for United States and Canada

Applications

Industrial sumps
Holding tanks
Residential tanks
Lift Stations

Options

5 = Level Transducer, 5 PSI, Max Water Level 11 ft., 50' Cable, Type: Wastewater
10 = Level Transducer, 10 PSI, Max Water Level 23 ft., 50' Cable, Type: Wastewater
15 = Level Transducer, 15 PSI, Max Water Level 35 ft., 50' Cable, Type: Wastewater
20 = Level Transducer, 20 PSI, Max Water Level 46 ft., 50' Cable, Type: Wastewater
BB = 12V Battery Backup for Alarm Circuit
BF = Include (1) High Level Backup Float & (1) Low Level Backup Float with 50’ Cables
PX = Pump Portal® Wireless Remote Communication
RPRO = Radar Sensor, 45 PSI, Sensing Range 33 ft., 50' Cable
UPRO = Ultrasonic Sensor, 45 PSI, Sensing Range 15 ft., 50' Cable

Lighthouse™ Digital Display

Settings Menu

Use the Settings Menu to adjust the Max. Sensor Ranges, Sensor Offsets, High/Low Level Alarms, and Passcode Settings. This area is protected if a passcode is enabled.

Operation Mode

Alarms are only triggered in Operation mode. High/Low Level Alarms are triggered by the float switch or analog level sensors.
