Three Phase Simplex Demand WS3P-TP

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.

Name

Company

Phone

Message

By clicking "Submit Quote Request", you agree to See Water's Terms of Use and Privacy Policy. You consent to receive phone calls and SMS messages from See Water, Inc. to provide updates on your quote, order, and/or for marketing purposes. Message frequency depends on your activity. You may opt-out by texting "STOP". Message and data rates may apply.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

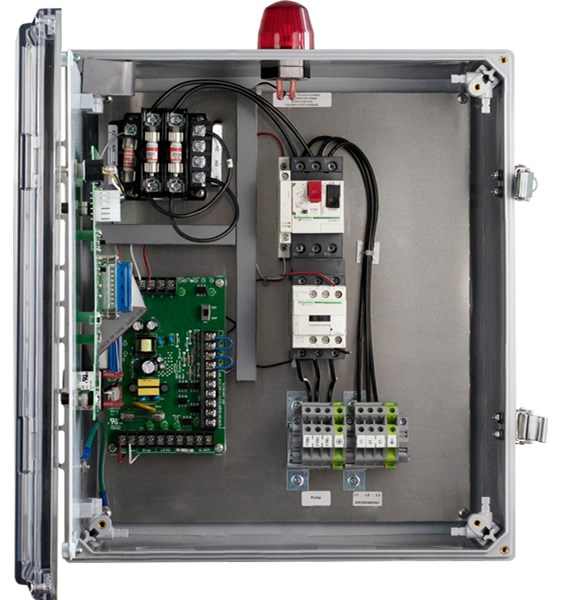

Three Phase Simplex Demand WS3P-TP Inside Photo

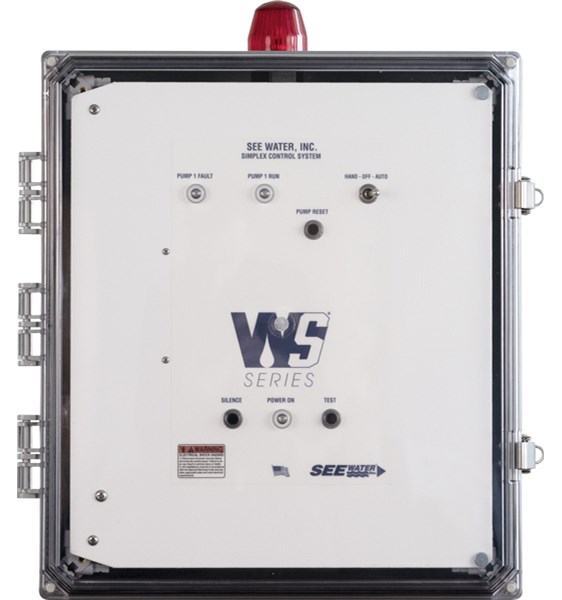

Three Phase Simplex Demand WS3P-TP Outside Photo

Literature

WS3P-TP-(3001-3009)

Schematic

WS3P-TP-3010

Schematic

WS3P-TP-(3011-3013)

Schematic

Typical Application: Three Phase Simplex Demand WS3P-TP

The WS Series® three phase simplex control panel will control a 208/240/480V three phase pump in sewage pump chambers, sump pump basins, and lift stations. See Water simplex control panels come standard with a clear front NEMA 4X rated enclosure, an IEC rated contactor, and a motor protective switch. All panels are UL listed for the United States and Canada, and come standard with a five-year warranty.

REQUEST A QUOTE

Model	Voltage	Full Load Amps
WS3P-TP-3001	208/240/480	1.0-1.6
WS3P-TP-3002	208/240/480	1.6-2.5
WS3P-TP-3003	208/240/480	2.5-4.0
WS3P-TP-3004	208/240/480	4.0-6.3
WS3P-TP-3005	208/240/480	6.0-10.0
WS3P-TP-3006	208/240/480	9.0-14.0
WS3P-TP-3007	208/240/480	13.0-18.0
WS3P-TP-3008	208/240/480	17.0-23.0
WS3P-TP-3009	208/240/480	20.0-25.0
WS3P-TP-3010	208/240/480	24.0-32.0
WS3P-TP-3011	208/240/480	30.0-40.0
WS3P-TP-3012	208/240/480	37.0-50.0
WS3P-TP-3013	208/240/480	48.0-65.0
WS3P-TP-3014	208/240/480	65.0-115.0

Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE

Features

UL listed for the United States and Canada (panel and controls)
Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
Pump control visible indicators: Pump hand-off-auto (H.O.A.) switch, green Pump Run light, red Pump Fault light with reset button, and Power On light
Alarm visible indicators: Red beacon alarm light, alarm test and silence buttons
Alarm horn sounds at 85 decibels at 10 feet
Remote monitoring by dry contacts: High Liquid, Pump Fault, Pump Run
Upgraded pump protection: Motor protective switch (branch circuit protection, adjustable overload and disconnect) and a thermal cutout with indicator

Applications

Sewage pump chambers
Grinder pumps
Sump pump basins
Lift stations

Custom Options

24 = Pump Exerciser
28 = Power On Dry Contact (Normally Open)
3R = Painted Steel Enclosure
AF = Alarm Flasher
AH = Anti Condensation Heater
C = Additional Cord Length Per Foot Per Component*
CC = Cycle Counter w/ LCD Display and Reset
CO = Convenience Outlet (User to supply 120 VAC)
ET = Elapsed Time Meter w/ LCD Display and Reset
GR = Generator Receptacle, Includes Transfer Switch
IS = Intrinsically Safe
LAD/LAW = Lightning Secondary Surge Arrestor (LAD Delta / LAW Wye)
LL = Low Level Alarm
MD = Main Disconnect; Up to 100 FLA
MD2 = Main Disconnect; 100 to 230 FLA
PM = Phase Monitoring
PX = Pump Portal® Wireless Remote Communication
SF = Seal Failure Circuit w/ Indicator Light
S3 = No Floats Option
SS4 = Upgraded Enclosure (304 Stainless Steel)
SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’: Specify after C. Example: (WS3P-TP-3001-C50) Indicates 50’ cord lengths for all floats.
