Oil Smart® Single Phase Simplex Panel OSSIM-30

Pump Water, Not Oil.™

The Oil Smart® simplex panel, when combined with a manual sump pump, will automatically pump water without the risk of pumping oil into the environment. Additionally, the system alerts maintenance or building personnel in the event of a high oil or high water condition. Installation of the simplex panel allows you to comply with Elevator Code ASME A17.1 and state/federal regulations while reducing the risk of adverse publicity, fines, and expensive cleanup costs.

REQUEST A QUOTE

Add Pump Portal® remote pump monitoring to this control panel!     LEARN MORE

Features

• Panel and controls UL Listed for United States and Canada
• Pump control and high liquid alarm differentiate between oil and water. The system includes the Oil Smart® pump control, Liquid Smart® alarm switch, and 20′ cords

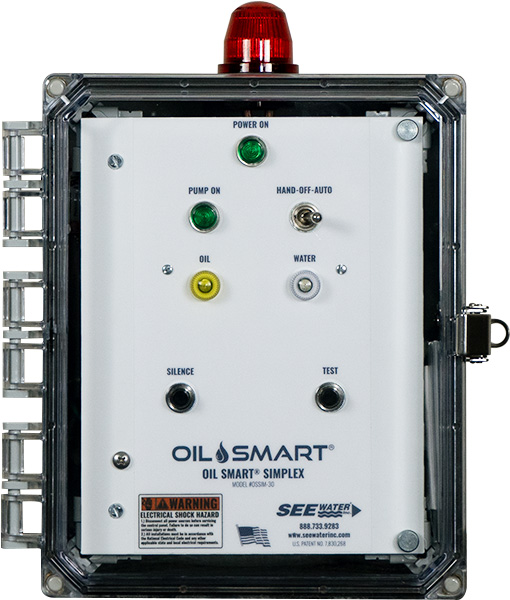

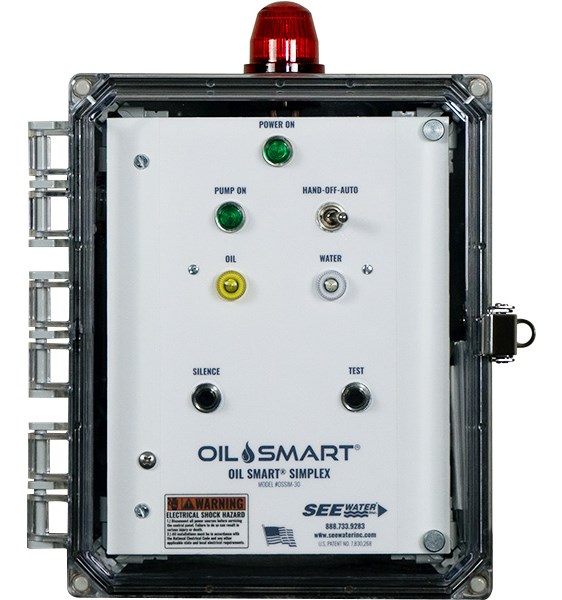

• Pump control visible indicators: Pump hand-off-auto (H.O.A.) switch, green Pump Run light, and Power On light
• Alarm visible indicators: Red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons
• Alarm horn sounds at 85 decibels at 10 feet
• Complete panel remote monitoring dry contacts: Oil, Water, High Liquid

Specifications

• 10″x8″x4″ UL-50 Type 6P listing
• Outdoor/Indoor NEMA 4X rated enclosure with heavy duty polycarbonate construction

Applications

• Elevator
• Electric utilities (substations, power plants, underground vaults, and transformer barriers)
• Any industrial sump or marine application

Why Oil Smart?

Capacitive Technology:

• The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.

No Moving Parts:

• Unlike other systems that utilize error prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.

Adjustable Alarm:

• The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different and the adjustable alarm allows the sensor to be placed at the actual high liquid level which ensures that nuisance alarms do not occur.

Adaptable to Any Pump:

• Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.

Easy Installation:

• Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed.
• We offer the only true plug-and-play system in the industry. The Oil Smart® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.

Custom Options

• 24 = Pump Exerciser - Auto Cycles Pump(s) Daily, Weekly, or Monthly
• AF = Alarm Flasher
• C = Additional Cord Length Greater than 20’*
• CB = Circuit Breaker
• CC = Cycle Counter w/ LCD Display and Reset
• DPR = Dry Contact for Pump Run
• E = 50Hz Configuration
• ET = Elapsed Time Meter w/ LCD Display and Reset
• MD = Main Disconnect
• PX = Pump Portal® Wireless Remote System Monitoring
• S3 = No Sensors Included

*Additional cord length greater than 20’. Specify after C. Example: (OSSIM-30-C50) Indicates 50’ cord lengths for all components.
