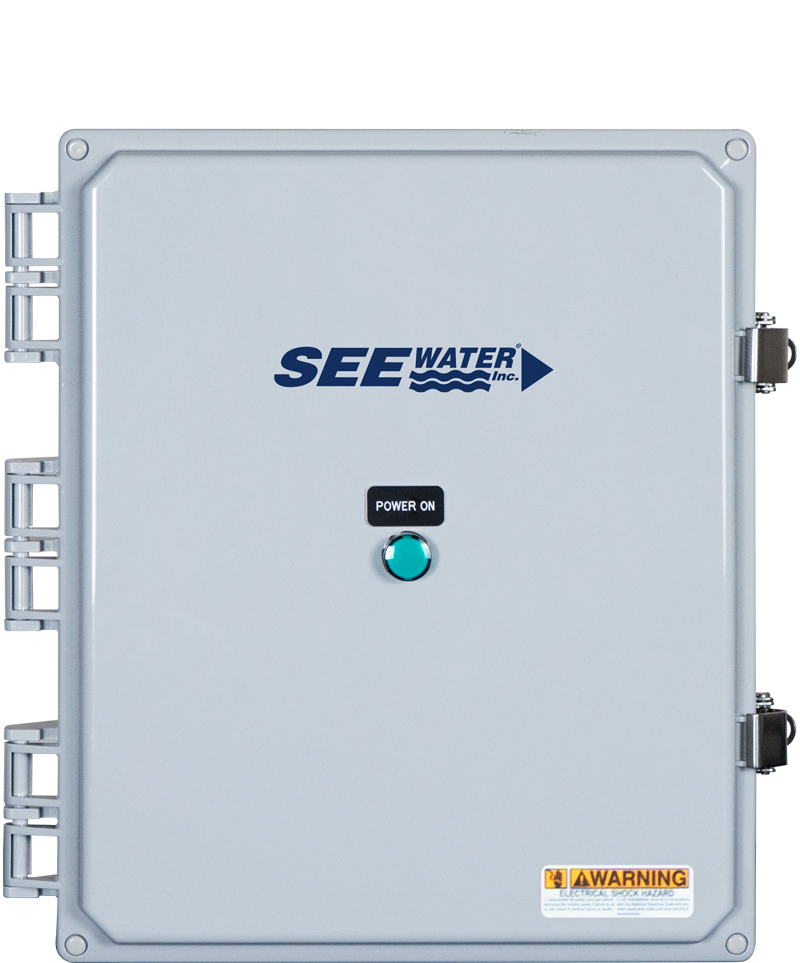

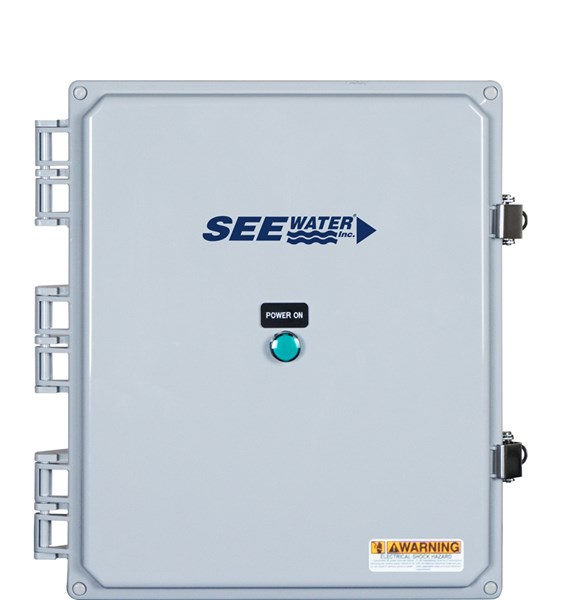

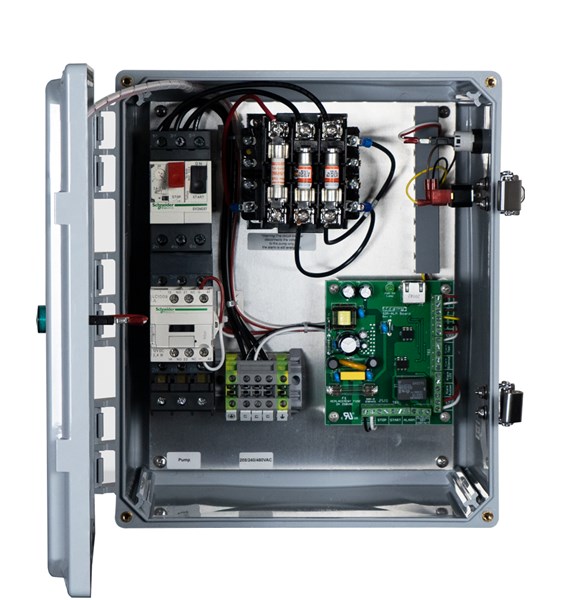

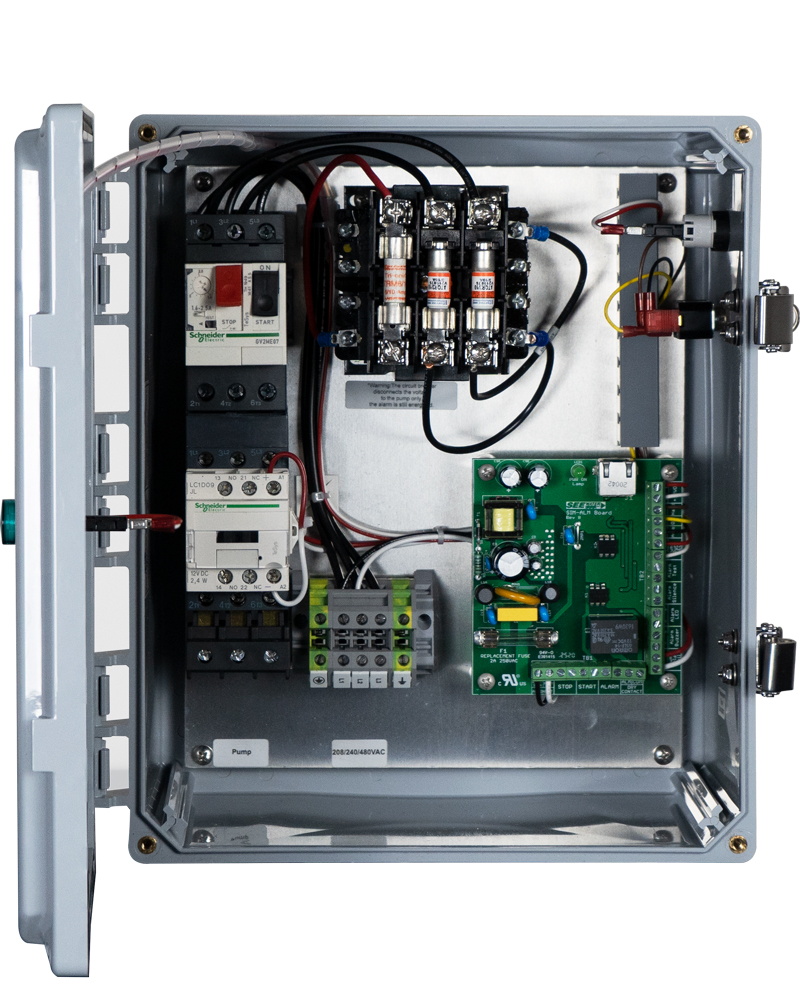

The SIM control panel will control a 208/240/480V three phase pump in dewatering, sewage, and wastewater pumping applications. These simplex control panels include integrated electronic control circuitry, an IEC motor contactor, and two floats: Pump On and Pump Off. The controls are housed in a NEMA 4X rated heavy duty polycarbonate enclosure convenient for field wiring. This panel is UL listed for the United States and Canada and comes standard with a five-year limited warranty.
| Model | Voltage | Full Load Amps |
| SIM3-1 | 208/240/480 | 1.0-1.6 |
| SIM3-2 | 208/240/480 | 1.6-2.5 |
| SIM3-3 | 208/240/480 | 2.5-4.0 |
| SIM3-4 | 208/240/480 | 4.0-6.3 |
| SIM3-5 | 208/240/480 | 6.0-10.0 |
| SIM3-6 | 208/240/480 | 9.0-14.0 |
| SIM3-7 | 208/240/480 | 13.0-18.0 |
| SIM3-8 | 208/240/480 | 17.0-23.0 |
| SIM3-9 | 208/240/480 | 20.0-25.0 |
| SIM3-10 | 208/240/480 | 24.0-32.0 |
Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE
Features
- UL listed for the United States and Canada
- Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
- Hand-off-auto (H.O.A.) switch for manual pump control and green LED pump run light
- Control board with Power On and Auto (H.O.A. toggle position) LED indicators
- Quick installation and low maintenance
Applications
- Sewage pump chambers
- Grinder pumps
- Sump pump basins
- Lift stations
Custom Options
- 24 = Pump Exerciser
- 3R = Painted Steel Enclosure
- C = Additional Cord Length Greater Than 20’*
- PX = Pump Portal® Wireless Remote Communication
- S1 = Substitute Two Narrow Angle Floats for One Wide Angle Float with 20’ Cord
- S3 = No Floats Included
- SS4 = Upgraded Enclosure (304 Stainless Steel)
- SS6 = Upgraded Enclosure (316 Stainless Steel)
*Additional cord length greater than 20’: Specify after C. Example: (SIM3-1-C50) Indicates 50’ cord length for all components.
