SIM Single Phase Simplex Pump Control Panel - Wastewater Panel
Quote Request
Request is being submitted...

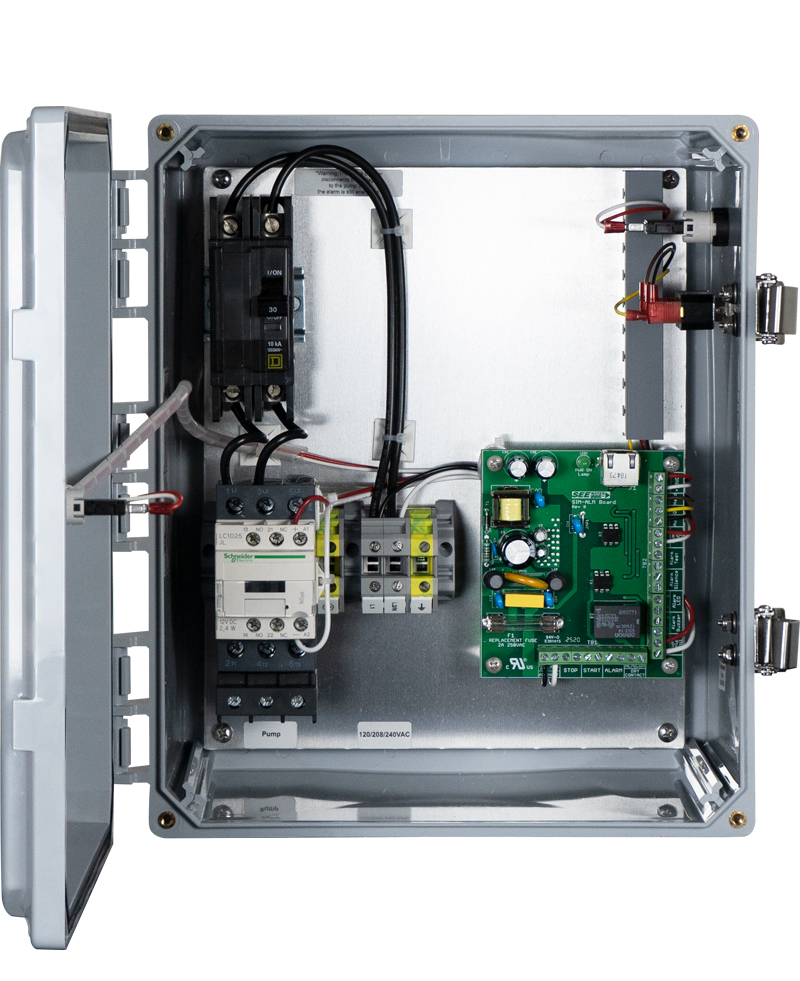

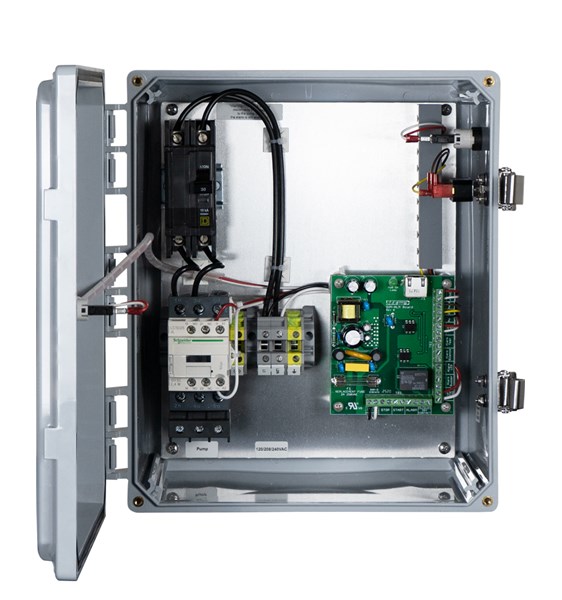

The SIM control panel will control a 120/208/240V single phase pump in dewatering, sewage, and wastewater pumping applications. These simplex control panels include integrated electronic control circuitry, an IEC motor contactor, and two floats: Pump On and Pump Off. The controls are housed in a NEMA 4X rated heavy duty polycarbonate enclosure convenient for field wiring. This panel is UL listed for the United States and Canada and comes standard with a five-year limited warranty.
| Model | Voltage | Full Load Amps |
| SIM1-1 | 120/208/240 | 0-7.0 |
| SIM1-2 | 120/208/240 | 7.0-15.0 |
| SIM1-3 | 120/208/240 | 15.0-22.0 |
Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE
Features
- UL listed for the United States and Canada
- Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
- Hand-off-auto (H.O.A.) toggle switch for manual pump control and green LED Pump Run light
- Control board with Power On and Auto (H.O.A. toggle position) LED indicators
- Quick installation and low maintenance
Applications
- Sewage pump chambers
- Grinder pumps
- Sump pump basins
- Lift stations
Custom Options
- 24 = Pump Exerciser
- 3R = Painted Steel Enclosure
- C = Additional Cord Length Greater Than 20’*
- PX = Pump Portal® Wireless Remote Communication
- S1 = Substitute Two Narrow Angle Floats for One Wide Angle Float with 20’ Cord
- S3 = No floats Included
- SS4 = Upgraded Enclosure (304 Stainless Steel)
- SS6 = Upgraded Enclosure (316 Stainless Steel)
*Additional cord length greater than 20’: Specify after C. Example: (SIM1-1-C50) Indicates 50’ cord length for all components.
