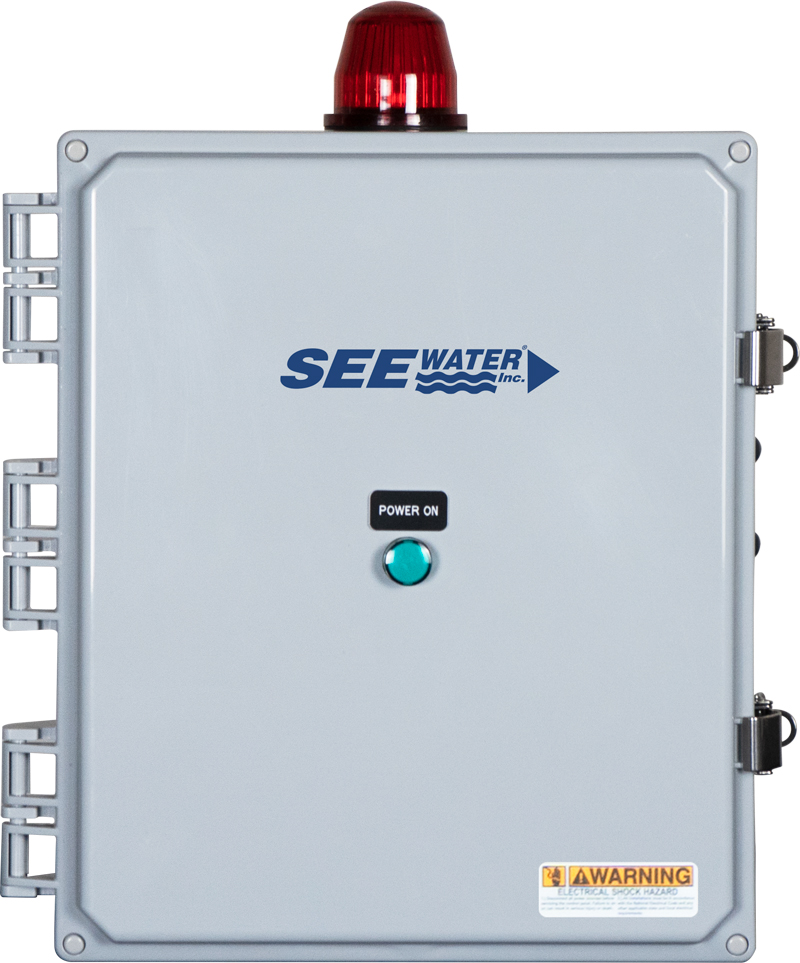

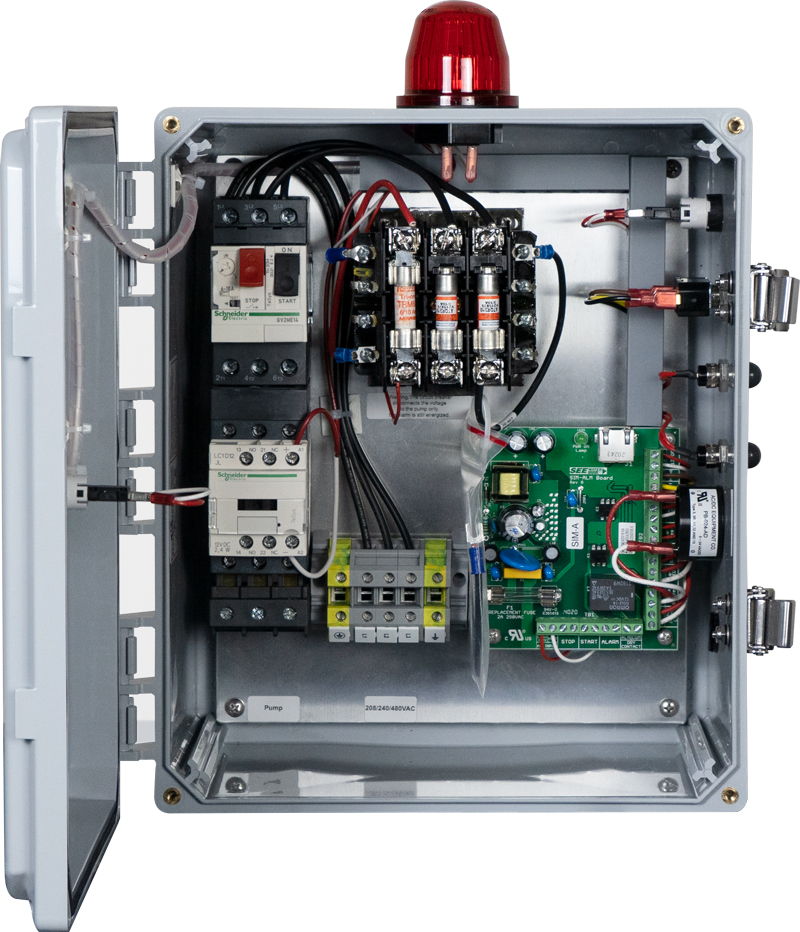

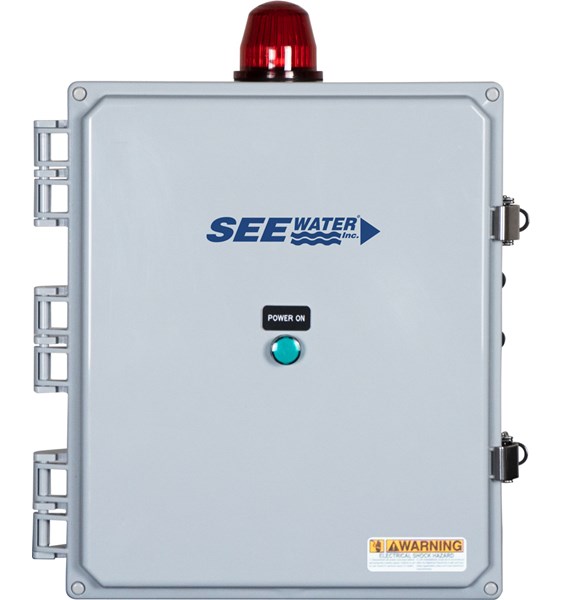

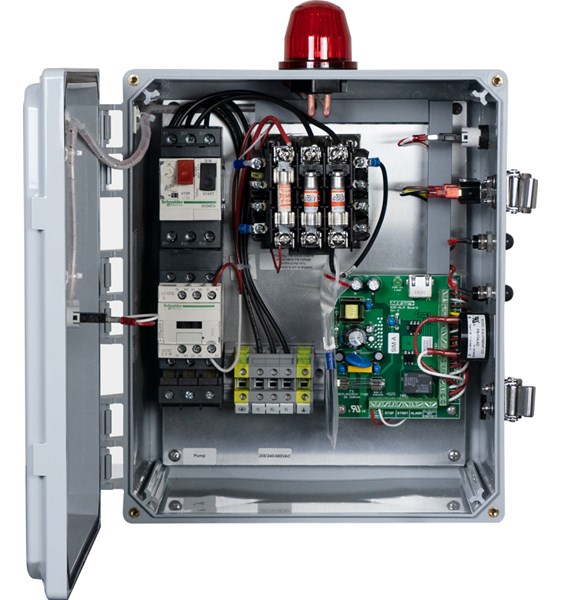

SIM-A Three Phase Simplex Inside Photo SIM-A Three Phase Simplex Outside Photo
Literature
Typical Application: SIM-A Three Phase Simplex

The SIM-A control panel will alert of a high liquid level and control a 208/240/480V three phase pump in dewatering, sewage, and wastewater pumping applications. Our simplex panels include integrated electronic control and alarm circuitry, an IEC motor contactor, and three floats: Pump On, Pump Off and High Liquid Alarm. The controls are housed in a NEMA 4X rated heavy duty polycarbonate enclosure convenient for field wiring. This panel is UL listed for the United States and Canada and comes standard with a five-year limited warranty.

REQUEST A QUOTE

Model Voltage Full Load Amps
SIM-A3-1 208/240/480 1.0-1.6
SIM-A3-2 208/240/480 1.6-2.5
SIM-A3-3 208/240/480 2.5-4.0
SIM-A3-4 208/240/480 4.0-6.3
SIM-A3-5 208/240/480 6.0-10.0
SIM-A3-6 208/240/480 9.0-14.0
SIM-A3-7 208/240/480 13.0-18.0
SIM-A3-8 208/240/480 17.0-23.0
SIM-A3-9 208/240/480 20.0-25.0
SIM-A3-10 208/240/480 24.0-32.0

Add Pump Portal® remote pump monitoring to this control panel!     LEARN MORE

Features

  • UL listed for the United States and Canada
  • Indoor/Outdoor NEMA 4X rated enclosure: Heavy duty polycarbonate with stainless steel lockable latches
  • Hand-off-auto (H.O.A.) toggle switch for manual pump control and green LED Pump Run light
  • Control board with Power On and Auto (H.O.A. toggle position) LED indicators
  • Quick installation and low maintenance
  • Alarm visible features: Red beacon alarm light
  • Alarm horn sounds at 85 decibels, at 10’
  • Test and silence buttons: Alarm automatically resets
  • Dry contact: High Liquid alarm

Applications

  • Sewage pump chambers
  • Grinder pumps
  • Sump pump basins
  • Lift stations

Custom Options

  • 24 = Pump Exerciser
  • AF = Alarm Flasher
  • C = Additional Cord Length Greater Than 20’*
  • PX = Pump Portal® Wireless Remote Communication
  • S1 = Substitute Two Narrow Angle Floats for One Wide Angle Float with 20’ Cord
  • S3 = No Floats Included
  • SS4 = Upgraded Enclosure (304 Stainless Steel)
  • SS6 = Upgraded Enclosure (316 Stainless Steel)

*Additional cord length greater than 20’: Specify after C. Example: (SIM-A3-1-C50) Indicates 50’ cord length for all components.
