Oil Smart® Upgraded Simplex Kit

Pump Water, Not Oil.™

Note: Thermal overload protection is generally provided in single phase pumps. To request a specific overload on the Oil Smart® Single Phase Models, contact the factory. Each panel includes a motor protector switch that will provide accurate pump circuit breaker protection.

Features

• Panel and controls: UL listed for the United States and Canada

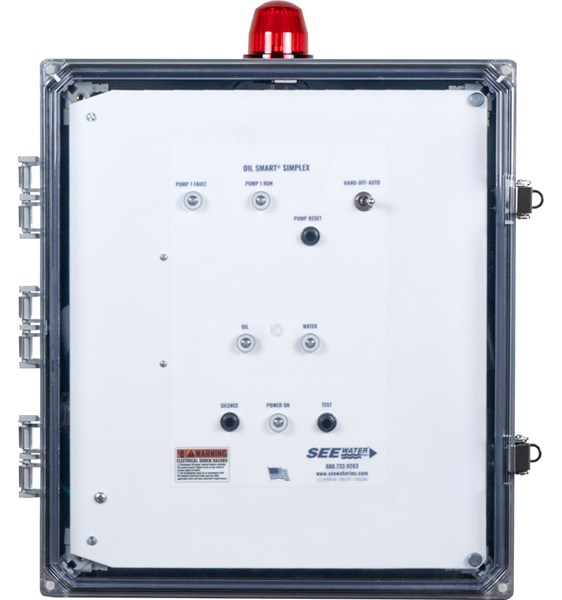

• Indoor/Outdoor NEMA 4X panel enclosure: heavy duty polycarbonate with stainless steel lockable latches
• Pump control visible indicators: pump hand-off-auto (H.O.A.) switch, green pump run light, red pump fault light, and green power on light
• Alarm visible indicators: red beacon alarm light, yellow light for oil, white light for water, alarm test and silence buttons
• Alarm horn sounds at 85 decibels at 10 feet
• Remote monitoring dry contacts: oil, water, high liquid, pump run, and pump fault

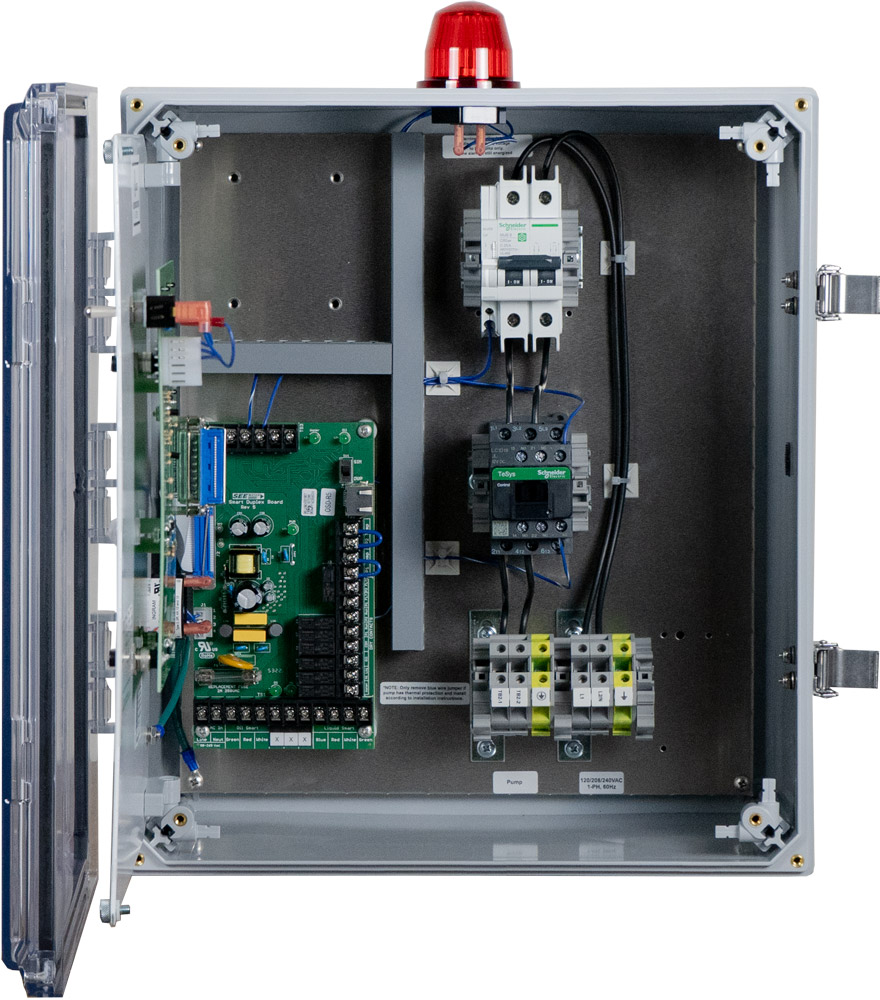

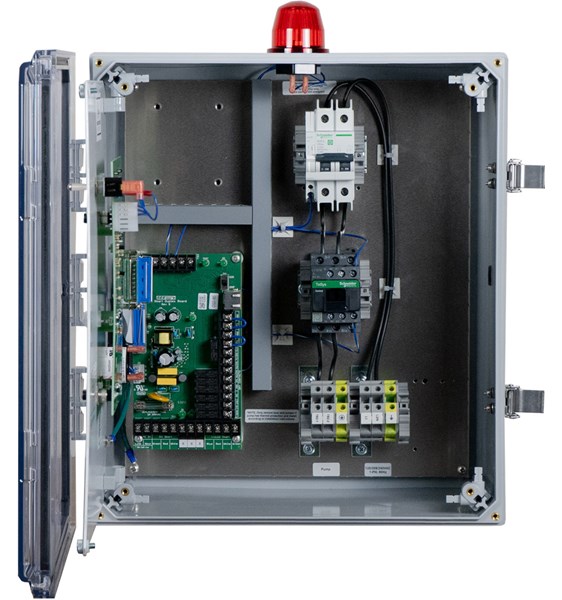

• Upgraded pump protection: motor protective switch (branch circuit protection, adjustable overload and disconnect), and a thermal cutout with indicator.
• Compliant with Elevator Code ASME A17.1 and state/federal regulations

Applications

• Elevator sumps
• Transformer containment areas
• Underground utility vaults
• Any application where there is a need to remove water while containing oil

Why Oil Smart?

Capacitive Technology:

• The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.

No Moving Parts:

• Unlike other systems that utilize error prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.

Adjustable Alarm:

• The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different and the adjustable alarm allows the sensor to be placed at the actual high liquid level which ensures that nuisance alarms do not occur.

Adaptable to Any Pump:

• Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.

Easy Installation:

• Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed.
• We offer the only true plug-and-play system in the industry. The Oil Smart® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.
