Oil Smart® Simplex Kit

Products Electric Utility Pump Kits

Quote Request

Oil Smart® Simplex Kit

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.


By clicking "Submit Quote Request", you agree to See Water's Terms of Use and Privacy Policy. You consent to receive phone calls and SMS messages from See Water, Inc. to provide updates on your quote, order, and/or for marketing purposes. Message frequency depends on your activity. You may opt-out by texting "STOP". Message and data rates may apply.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

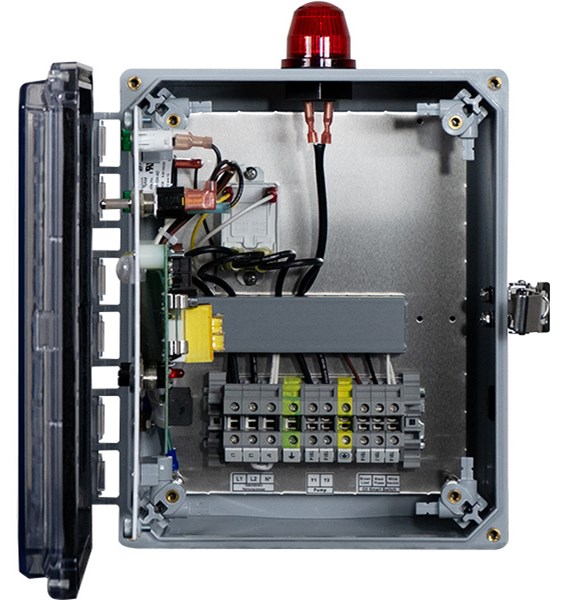

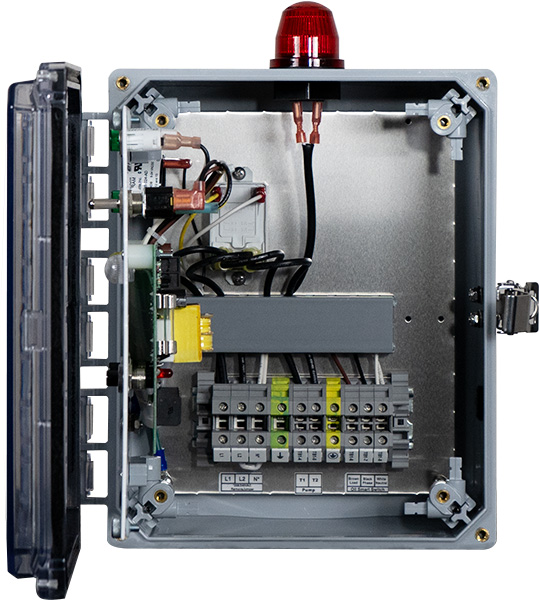

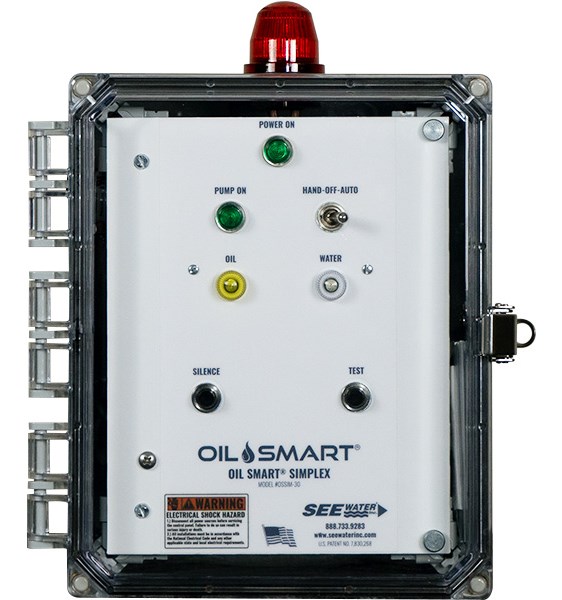

Oil Smart® Simplex Kit Inside Photo Oil Smart® Simplex Kit Outside Photo
Literature
oil smart logo

Pump Water, Not Oil.™

Model Circuit Breaker VAC Phase Operates Pumps Up To
OSSIM-30   120/208/240 Single 1HP @ 120V
2HP @ 208/240V
OSSIM-30-CB Yes 120/208/240 Single 1HP @ 120V
2HP @ 208/240V

Features

  • Panel and Controls UL Listed for United States and Canada.
  • Pump Control and High Liquid Alarm differentiate between oil and water - Includes Oil Smart®-Pump Control, and Liquid Smart® Alarm Switch, and 20′ Cords
  • Pump Control Visible Indicators: Pump Hand-Off-Auto (H.O.A.) Switch, Green Pump Run Light and Power On Light
  • Alarm Visible Indicators: Red Beacon Alarm Light, Yellow Light for Oil, White Light for Water, Alarm Test and Silence Buttons
  • Alarm Horn Sounds at 85 Decibels at 10 Feet
  • Complete Panel Remote Monitoring Dry Contacts: Oil, Water, High Liquid
  • Compliant with Elevator Code ASME A17.1 and state/federal regulations

Specifications

  • 10″x8″x4″ UL-50 Type 6P Listing
  • Outdoor/Indoor NEMA 4X enclosure, heavy duty Polycarbonate construction

Applications

  • Elevator
  • Electric Utilities ( Substations, Power Plants, Underground Vaults, and Transformer Barriers)
  • Any Industrial Sump or Marine Application

Why Oil Smart?

    Capacitive Technology:

  • The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.

    • No Moving Parts:

  • Unlike other systems that utilize error prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.

    • Adjustable Alarm:

  • The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different and the adjustable alarm allows the sensor to be placed at the actual high liquid level which ensures that nuisance alarms do not occur.

    • Adaptable to Any Pump:

  • Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.

    • Easy Installation:

  • Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed.
  • We offer the only true plug-and-play system in the industry. The Oil Smart® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.


*Please consult the factory for custom panel options
