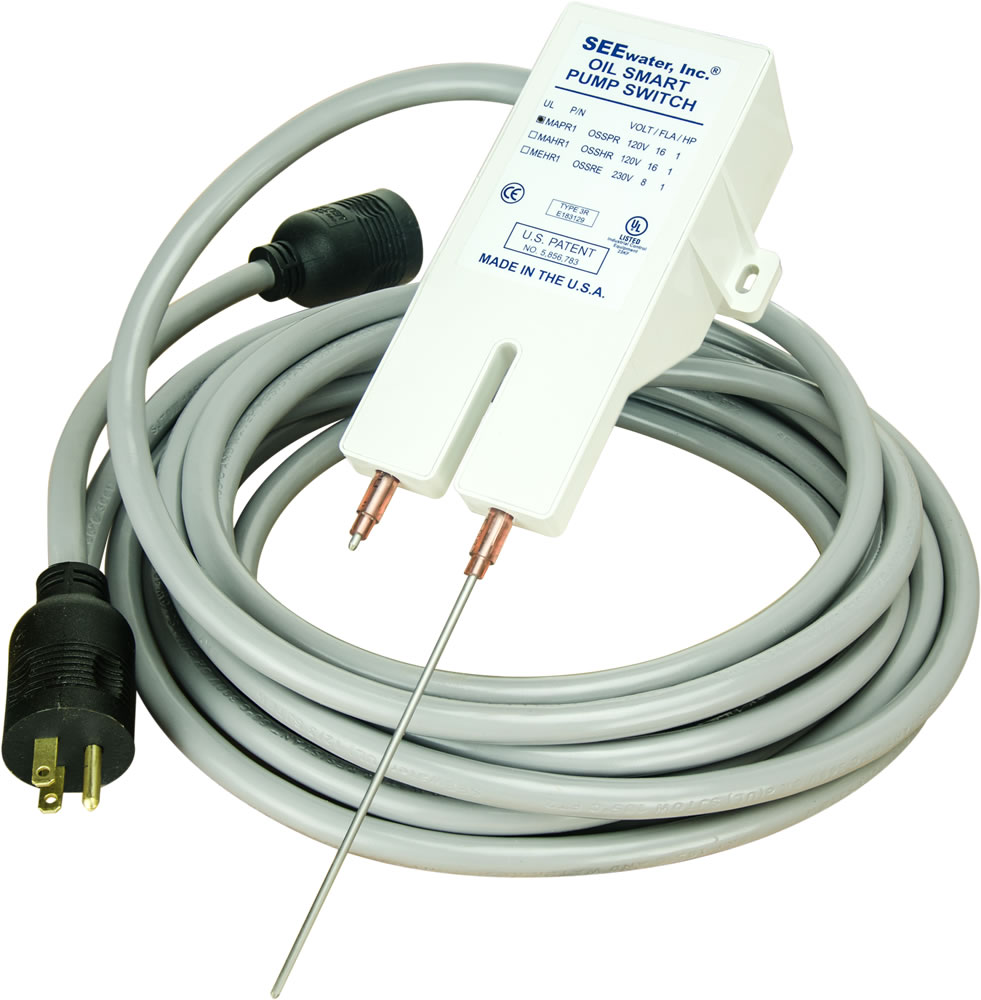

Oil Smart® Pump Switch

Give us a call at 1.888.733.9283 to speak with one of our expert Sales Engineers or submit an online quote request by filling out the form below.

Name

Company

Phone

Message

By clicking "Submit Quote Request", you agree to See Water's Terms of Use and Privacy Policy. You consent to receive phone calls and SMS messages from See Water, Inc. to provide updates on your quote, order, and/or for marketing purposes. Message frequency depends on your activity. You may opt-out by texting "STOP". Message and data rates may apply.

Request is being submitted... loading image

Your quote request has been submitted to our Sales Department. One of our Sales Engineers will contact you by phone or email within 24 hours or less.

An unexpected error has occurred.

Literature

Catalog

Typical Application: Oil Smart® Pump Switch

Pump Water, Not Oil.™

Overview

The Oil Smart® Pump Switch, when combined with a non-auto sump pump, will allow water to be pumped without the risk of pumping oil. This product is ideal for elevator sumps, transformer containment areas and underground utility vaults. Since 1995, the Oil Smart® pump switch has been the reliable choice for safely pumping water.

REQUEST A QUOTE

Model	Volts	Full Load Amps	Assembly	Pumping Range
OSS20R6	120 60Hz.	0-9.8 FLA	Bare Leads	6″
OSS20PBPR6	120 60Hz.	0-16.0 FLA	Piggyback Plug	6″
OSS20R6E	230 50/60Hz.	0-9.8 FLA	Bare Leads	6″
OSS20R6DC	12/24VDC	N/A	Bare Leads	6″

Add Pump Portal® remote pump monitoring to this control panel! LEARN MORE

Features

Directly controls sump pumps 0 to 1 hp or 16FLA (piggyback): Quick installation
Available in 120 VAC, 230 VAC 50/60 Hz., or 12/24 VDC
No expensive electrical panel required
Sensors differentiate between oil and water
Differential between on and off is 6” (Pumping Range)
Available as hardwire or piggyback plug configuration
Helps satisfy Elevator Code ASME A17.1 and the EPA’s Spill Prevention, Control and Countermeasure Plan

Applications:

Elevator sumps
Transformer containment areas
Underground utility vaults
Any application where there is a need to remove water while containing oil

Why Oil Smart?

Capacitive Technology:

The Oil Smart® system uses capacitive sensors that are factory-calibrated for immediate operation to differentiate between oil and water. In contrast to conductive sensors, capacitive sensors are insulated by oil and do not require ongoing maintenance.

No Moving Parts:

Unlike other systems that utilize error prone floats as their primary oil and water sensors, Oil Smart® technology uses reliable solid-state sensors that do not require any moving parts. In addition, See Water’s Oil Smart® sensors have been third-party factory-tested for over 1 million cycles.

Adjustable Alarm:

The Liquid Smart® Alarm Sensor can be placed at any predetermined level. Every application is different and the adjustable alarm allows the sensor to be placed at the actual high liquid level which ensures that nuisance alarms do not occur.

Adaptable to Any Pump:

Not all jobs or applications are equal, which is why Oil Smart® technology allows for the flexibility of being paired with any submersible pump.

Easy Installation:

Our capacitive technology allows for hand testing of the sensors, whereas conductive technology requires more steps to test when the system is installed.
We offer the only true plug-and-play system in the industry. The Oil Smart® Plug-and-Play System (OSS-100) is the easiest elevator sump pump system to install on the market. With over 25 years of proven field results, Oil Smart® is the preferred solution by environmental specialists and engineers for preventing catastrophic oil spills.

Custom Options

12 = Custom 12 AWG option (available in OSS20R6 and OSS20R6E).
Example: OSS20R6-12 = 12 AWG wire
C = Custom cord length (available in OSS20R6, OSS20R6E and OSS20R6DC).
Example: OSS20R6-C50 = 50’ cord length
