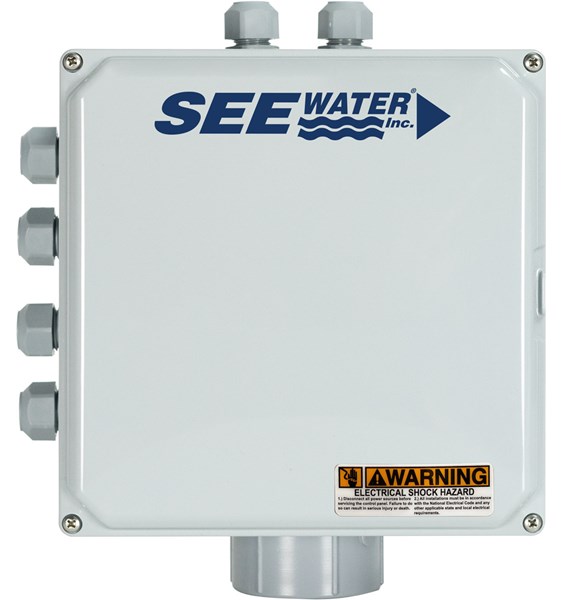

See Water’s junction boxes provide a convenient location for the quick connection of wiring in a pump station, on-site or in any other electrical installation. Our premium junction boxes are UL listed, NEMA 4X rated and made in the USA.
| Model | Size | Description |
| 95-10 | 6”x 6”x 4” |
Polycarbonate Junction Box (No connectors or hubs installed) |
| 95-11 | 8”x 8”x 4” |
Polycarbonate Junction Box for Simplex System (1.5” Hub, 3 Float Grips, 1 Small Pump Grip: .2” - .44”) |
| 95-12 | 8”x 8”x 4” |
Polycarbonate Junction Box for Duplex System (2” Hub, 4 Float Grips, 2 Small Pump Grips: .2” - .44”) |
| 95-13 | 8”x 8”x 4” |
Polycarbonate Junction Box for Simplex System (1.5” Hub, 3 Float Grips, 1 Large Pump Grip: .435” - .705”) |
| 95-14 | 8”x 8”x 4” |
Polycarbonate Junction Box for Duplex System (2” Hub, 4 Float Grips, 2 Large Pump Grips: .435” - .705”) |
| 95-15 | 8”x 8”x 4” |
Polycarbonate Junction Box (No Connectors or Hub Installed) |

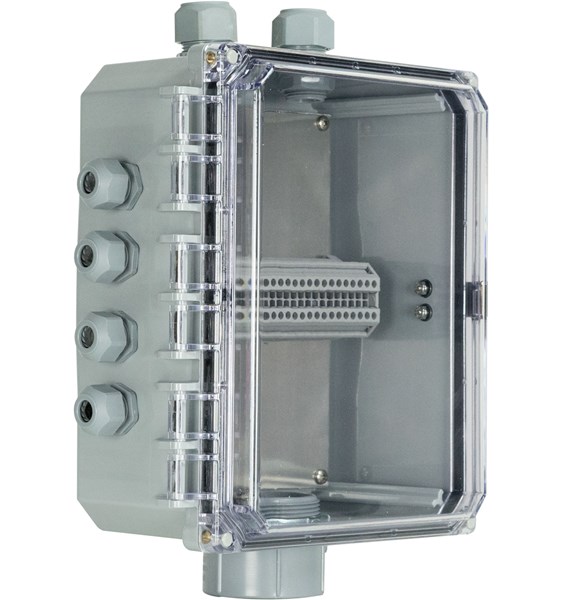

| 96-04 | 10”x 8”x 6” |
Clear Front Polycarbonate Junction Box (2” Hub, 4 Float Grips, 2 Large Pump Grips: .435” - .705”) |
Note: For duplex three-float systems, place "3" after model # to order the junction box with two float grips.
Optional
To add back plate and terminal block to junction box, place “P” followed by the number pins required on the double row terminal block (i.e. #95-11P9). Contact the factory for custom junction box options and pricing.
Features
- NEMA 4X rated for outdoor use
- Pull point to remove front lid
- Includes external mounting hardware
- Protects electrical connections from moisture and other elements
Specifications
- Indoor/Outdoor NEMA 4X rated enclosure with lid: Heavy duty polycarbonate with screw cover
- Hub and wire grips: Liquid tight, UL listed and CSA certified
- Temperature range: -40º to 265ºF
