Literature

Catalog

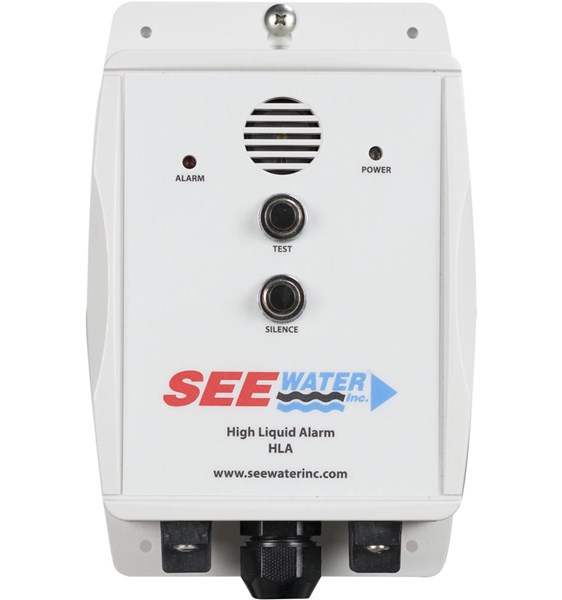

The HLA is designed for easy indoor installations, and is equipped with external terminals for float and remote alarm status indication. The alarm panel will alert of potential threatening liquid level conditions.

REQUEST A QUOTE

Features

Plug-and-play for easy installation
120VAC, single phase, 60 Hz
Includes 10' power cord
UL listed for the United States and Canada (panel and control)
Includes one narrow angle float switch with 20' cord
Alarm visible indicators: Red LED alarm light, test and silence buttons
Green Power On indicator
Audible alarm provides audio warning of alarm condition (85 decibel)
Alarm automatically resets when liquid level is back to normal
Remote monitoring dry contact
External terminal blocks for float switch and dry contact connections

Add Pump Portal® remote pump monitoring to this system! LEARN MORE

Options:

C = Additional cord length greater than 20'*
PX = Pump Portal® Wireless Remote Panel Control and System Monitoring
S3 = No floats
S4 = Normally closed float (for low level applications)

Additional cord length greater than 20': Specify after C. Example: (HLA-C50) Indicates 50' cord length for float switch.

Applications

Industrial sumps
Holding tanks
Residential tanks
Lift stations
